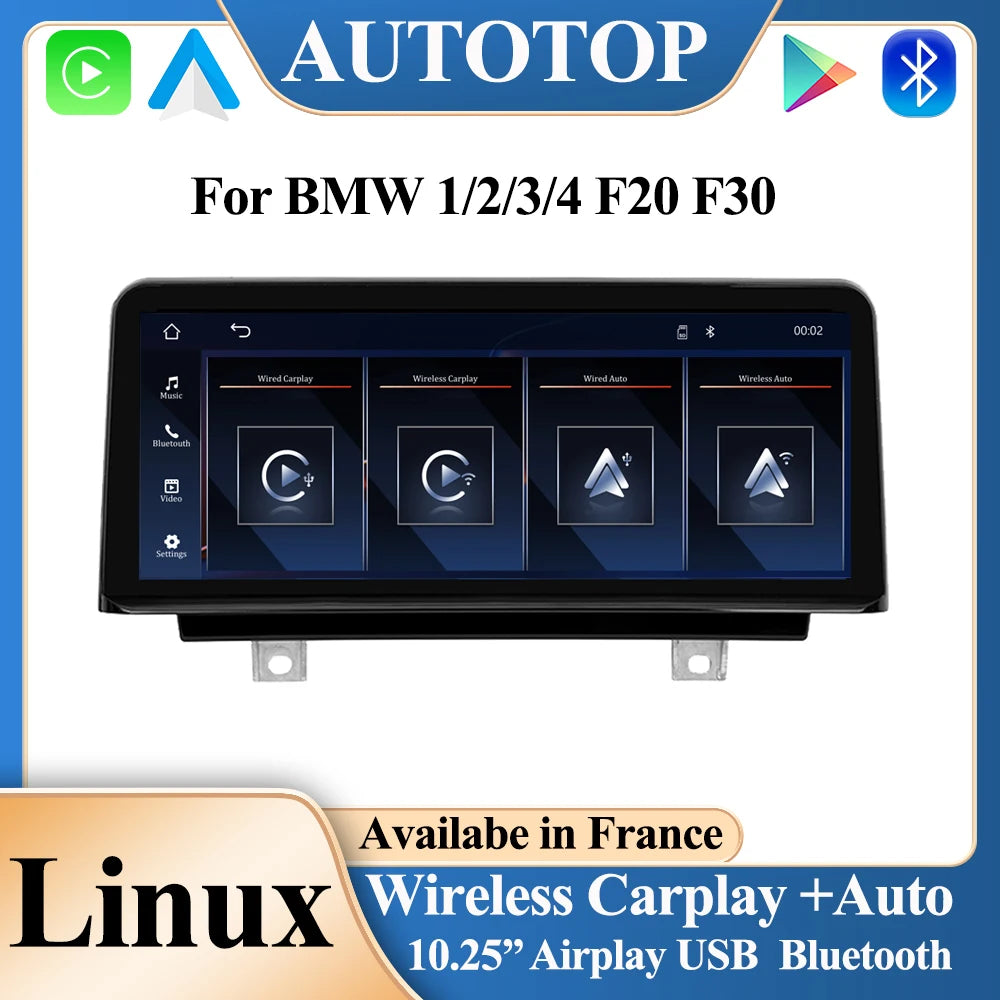

AUTOTOP 10.25" Linux Screen Wireless Carplay for BMW F30 F31 F32 F33 F34 F35 F20 F21 F22 NBT Retrofit Android Auto Multimedia BT
AUTOTOP 10.25" Linux Screen Wireless Carplay for BMW F30 F31 F32 F33 F34 F35 F20 F21 F22 NBT Retrofit Android Auto Multimedia BT
Couldn't load pickup availability
SPECIFICATIONS
Accessory Type: Power cable,USB Cable,iDrive (Optional)
Brand Name: AUTOTOP
Built-in CD player: No
Built-in DVD Player: No
Built-in Screen: Yes
Category: Electrical Tuner
Certification: CE,FCC,weee
Chipset: T133
Digital Media Format: Mp3,MP4,WMA,JPEG
Din: Double Din
Display Size: 10.25
Doesn't support the system menu: CCC,CIC,EVO
For Vehicle Brands/Model: BMW
Interface: AUX/USB
Is touch screen: Yes
Item Size: 40*20*20
Item Weight: 3
Material: Plastic
Max External Memory: 8G
OSD Language: Chinese (Simplified),Chinese (Traditional),Polish,German,Russian,French,Korean,Portuguese,Japanese,THAI,Spanish,English
Operating System: Linux
Origin: Mainland China
Out Power: 4*45W
Output Type: Colored
Preset Station: Use Original Radio
Processor Type: Allwinner
Product Warranty Period: One year (excluding damage caused by human error)
RAM: 256Mb
ROM: 2 G
Resolution: 1920*720
Shipping Channels: We have multiple shipping warehouses around the world, providing local delivery services with the fastest delivery time of 24 hours.
Special Features: Built-In Speaker/Microphone,wifi function,Support steering wheel control,Support Can-Bus,Built-in GPS,Mobile Phone,Voice Control,CarPlay,android auto,Reversing Input
Support the original system menu: NBT
System advantages: There are no unnecessary or complicated applications, and booting up can be completed in 5 seconds.
TF/Micro SD Slot: 0
Upgrade the New Function: Wireless Apple Carplay and Android Auto,Airplay Android mirroring
Voltage: 12 V
Warranty: 12 Months

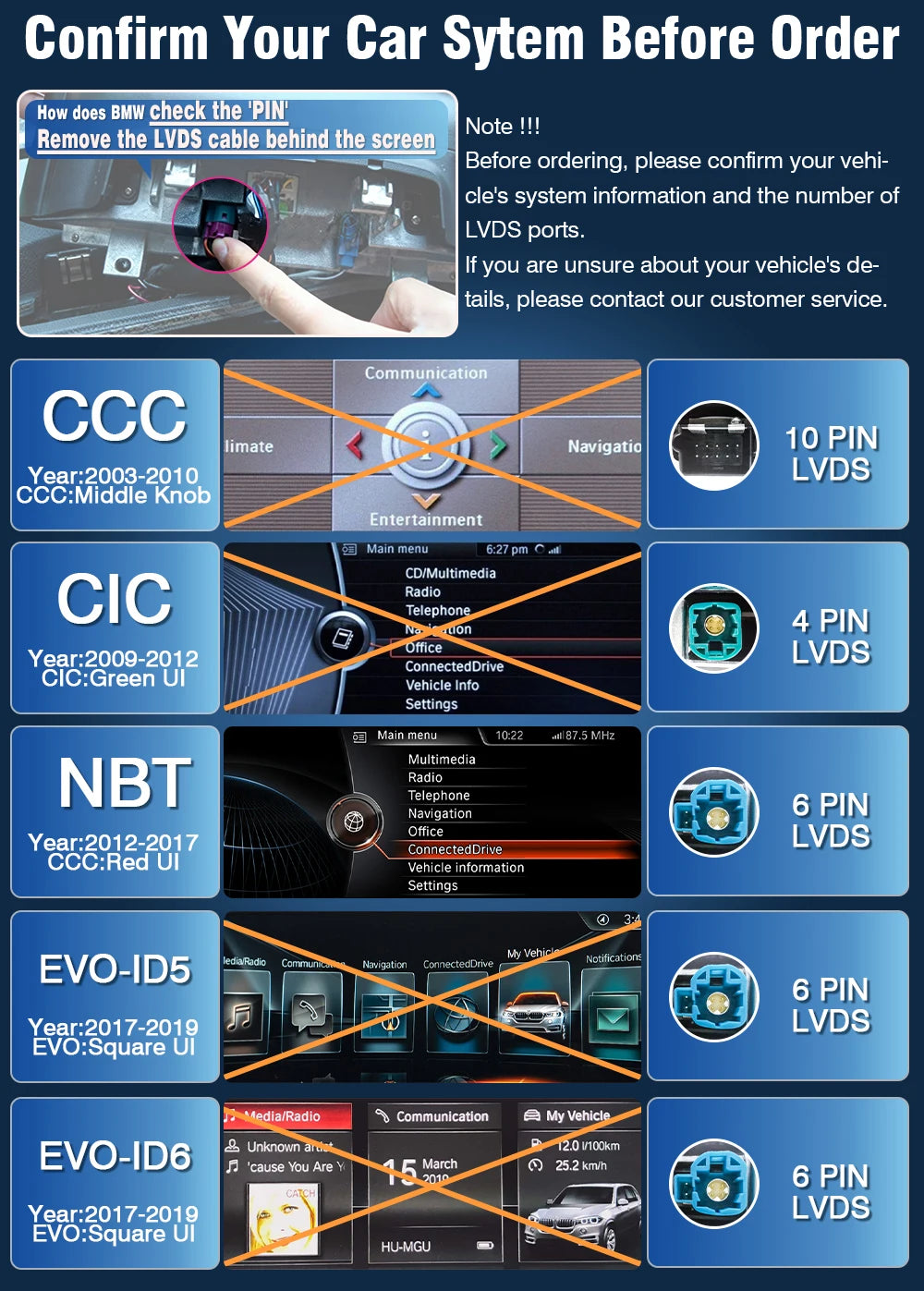

Warming: The car multimedia player touchscreen does not support BMW EVO system !!!
If your car is BMW 2 series F20,you purchased BMW 3 series F30 car multimedia player touchscreen, so it is not compatible with your vehicle models.
Note:

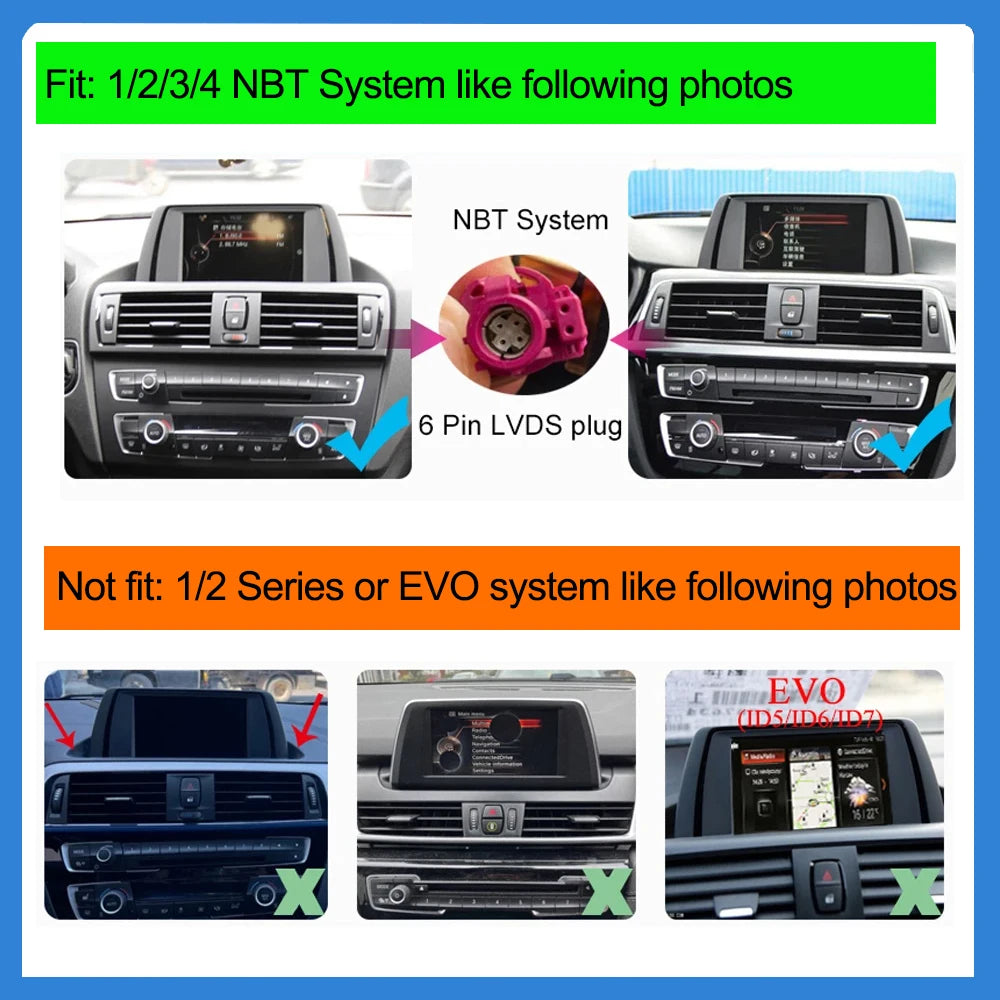

A: 1 2 Series models distinguish between left-hand drive and right-hand drive configurations, and support both CIC( is 6 pin LVDS) and NBT systems.
If your 1 2 Series models is EVO(ID5 ID6) system, this radio do not support your car models.
For the European and US regions, we ship the left-hand drive version by default.
For the UK region, we ship the right-hand drive version by default.
B: 3 4 Series models do not distinguish between left-hand drive and right-hand drive configurations; however, they support only the NBT system and do not support CIC or EVO.
BMW Linux system Multimedia Screen with YouTube version

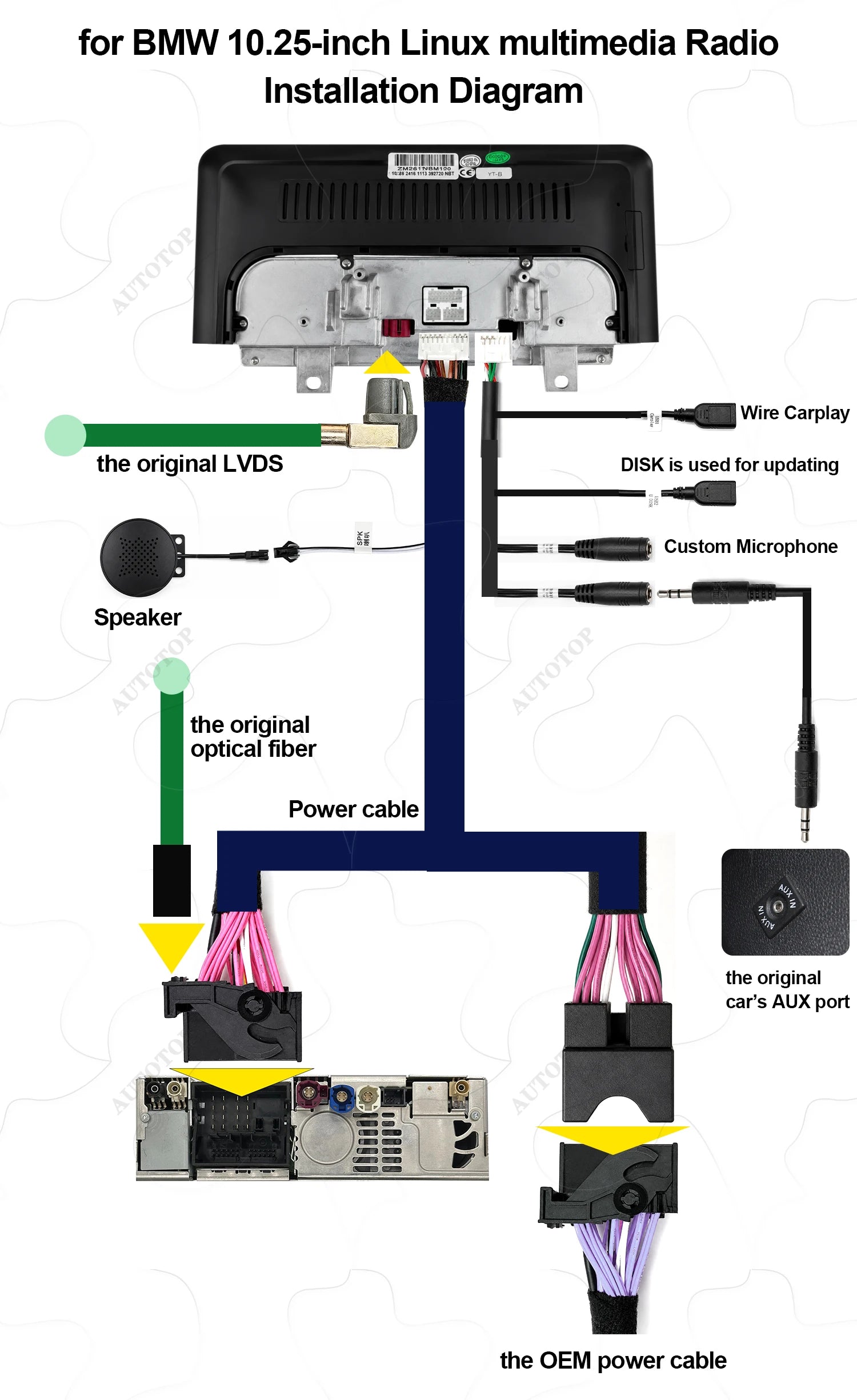

Installation Guide
The installation process consists of three main steps:
Step 1: Connect the Vehicle Wiring Harness to the Multimedia Screen
1. LVDS and Fiber Optic Cables
a. Connect the vehicle’s 6-pin LVDS cable and the fiber optic cable (green cable).
b. If your vehicle is not equipped with a fiber optic cable, this connection is not required.
c. If the original car's system interface displays a "No Signal" prompt, it indicates that you have not connected the car's original LVDS cable to the multimedia screen.
2. USB Connections
There are two USB cables that need to be routed to the passenger side for future system updates:
CarPlay USB Port: Used for wired CarPlay connections.
DISK USB Port: Used for system firmware updates.
3. AUX cable Connections
a. Mic cable: We have reserved an interface for a custom microphone.
b. Audio output cable: If your car has Bluetooth, use the built-in Bluetooth to get the best original sound from your car’s audio.
If your car does not have Bluetooth, use an AUX cable.
c. To use AirPlay, connect the AUX cable and use your car's original AUX audio.
How do I set the basic parameters after installation?

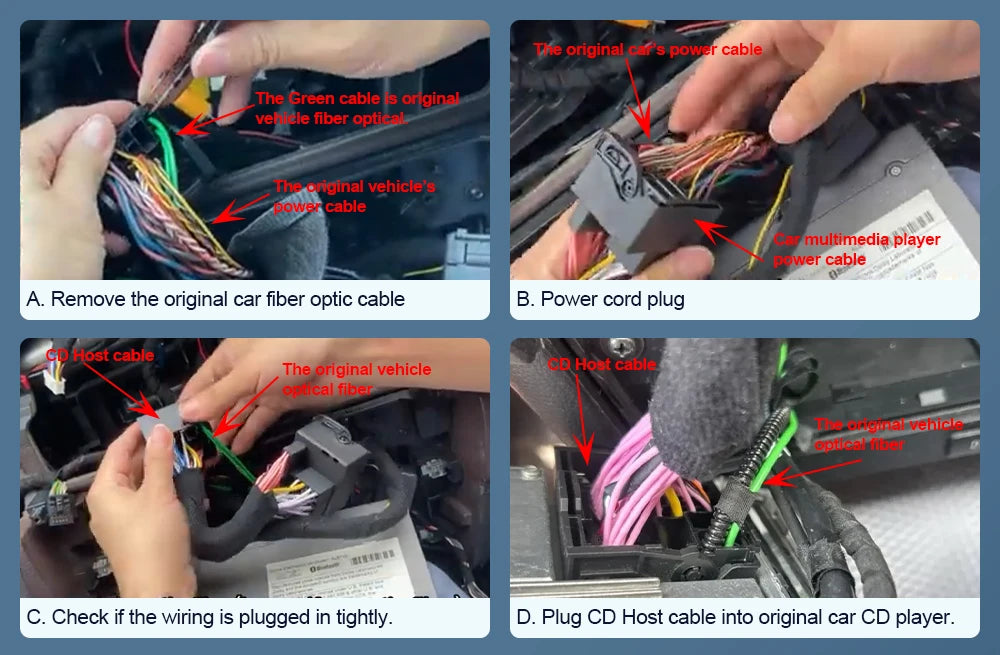

I. You also need to make sure the original optic fiber cable(Green cable) is connected to our power cable，like the below photo.

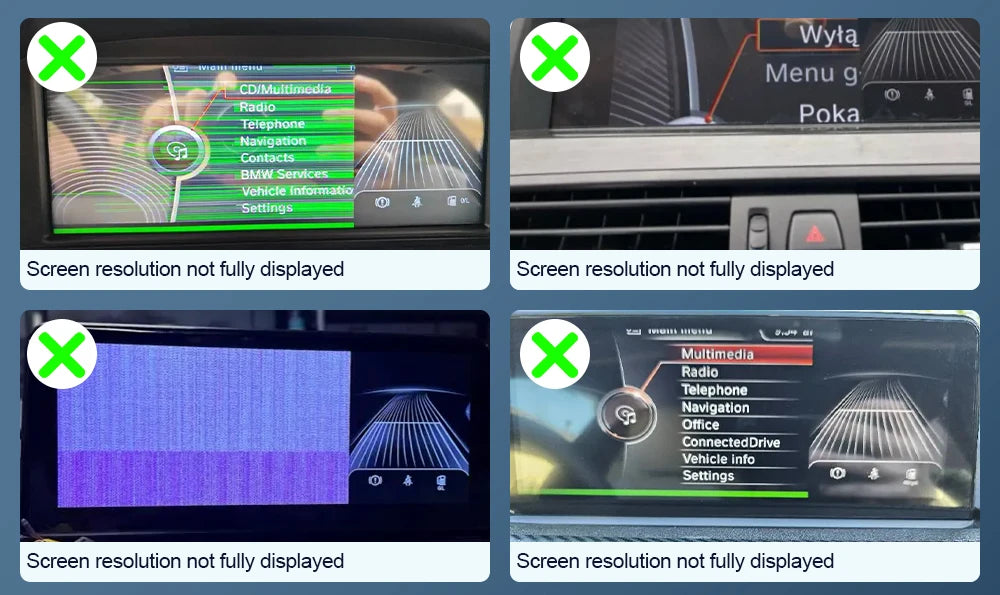

II. If the following situations occur, it's not due to screen damage; you simply need to adjust the screen resolution settings.

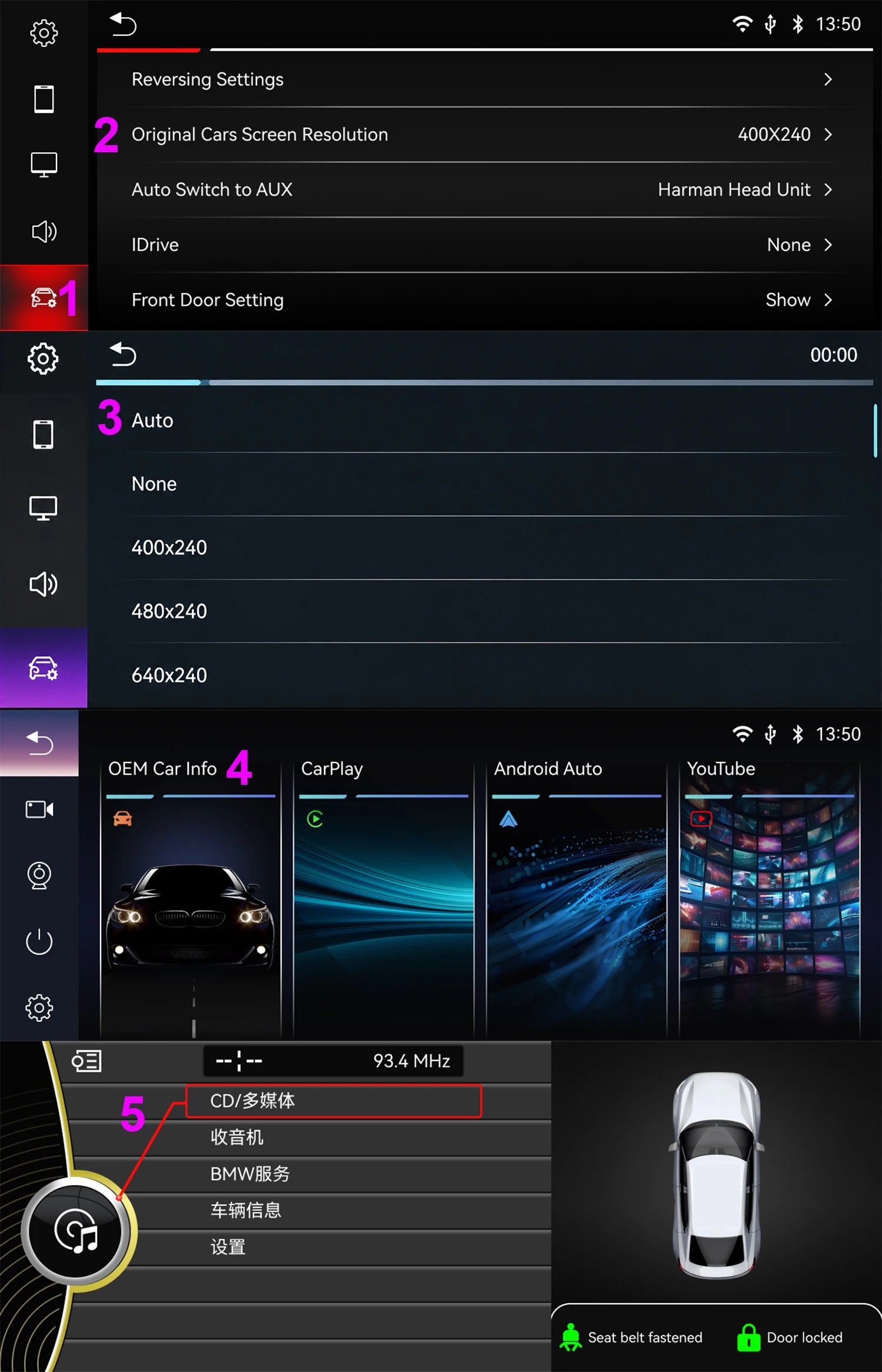

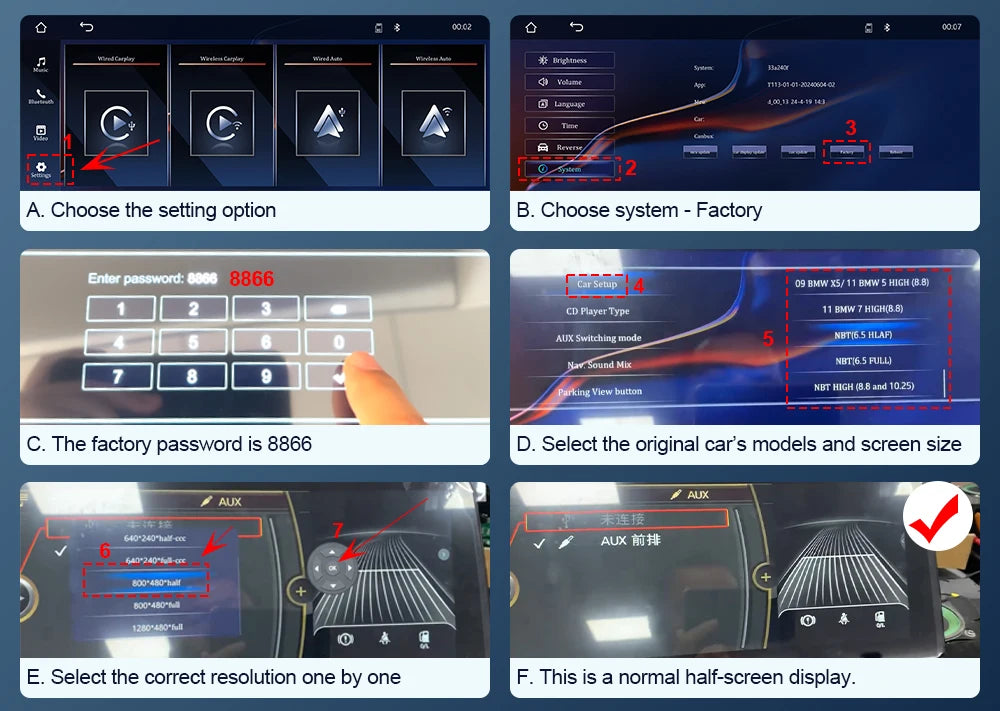

III. Steps for setting screen resolution:
A. Choose the setting option.
B. Choose system - Factory
C. The factory password is 8866.
D. Select the original car's models and screen size
E. Select the correct resolution one by one,Continue until the original vehicle system menu displays correctly.

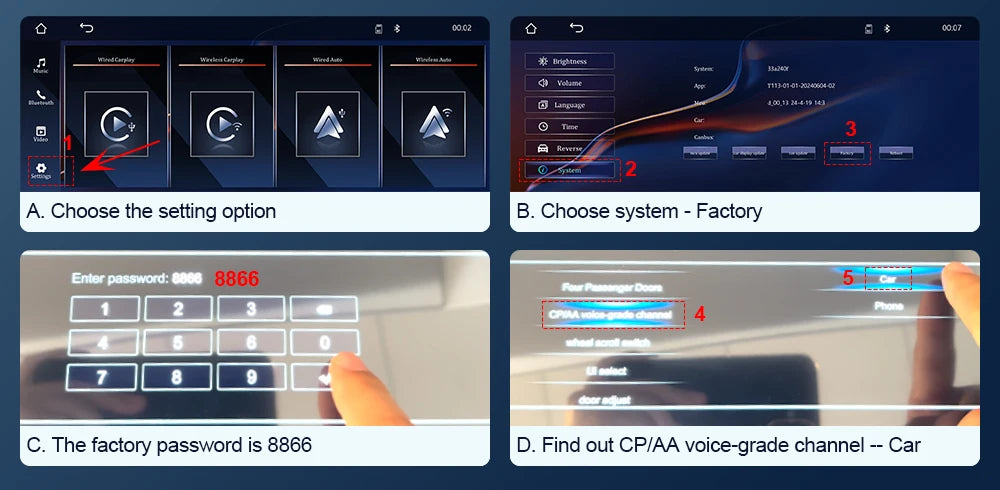

IV. Questions: In the CarPlay system, if you find there is no sound when playing music, you can first check whether you are using a Bluetooth connection.
Solution:
A. Choose the setting option.
B. Choose the system -- Factory
C. Enter 8866 in the factory.
D. Find out CP/AA voice-grade channel -- Car.

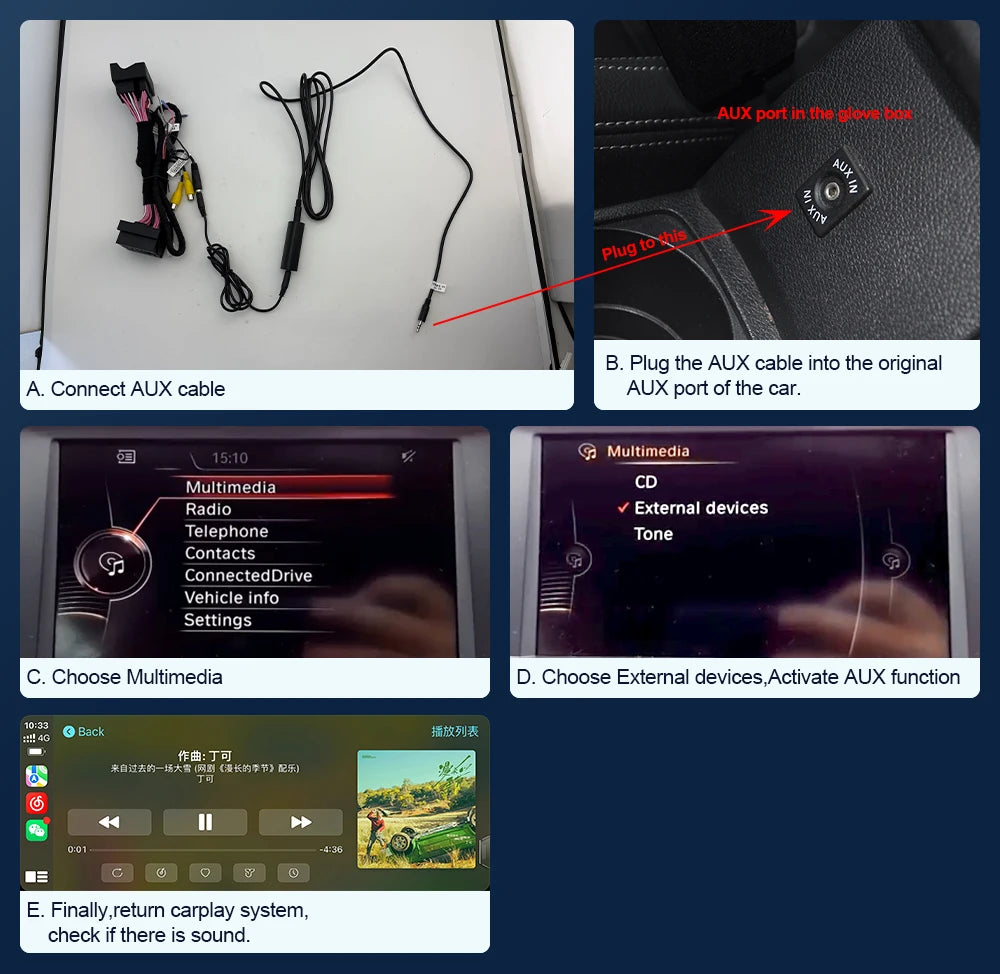

V. If you find that you have successfully connected via Bluetooth, but there is still no sound in the CarPlay system, you will need to purchase an AUX cable locally. The method for activating the AUX settings is the same for both CIC and NBT systems.
A. Connect AUX cable
B. Plug the AUX cable into the original AUX interface in the glove box.
C. Choose Multimedia.
D. Choose External devices,Activate AUX functionChoose the AUX front.
E. Finally,return carplay system,check if there is sound.
F. If there's still no sound, try connecting the AUX cable to your phone's AUX port to test whether the phone produces sound.
If you hear sound, the car's AUX port is functioning properly.
If there's no sound, the car's AUX port may be faulty and require repair.
